Component layout evidence
A backpack parts diagram works better when buyers can see the parts before assembly

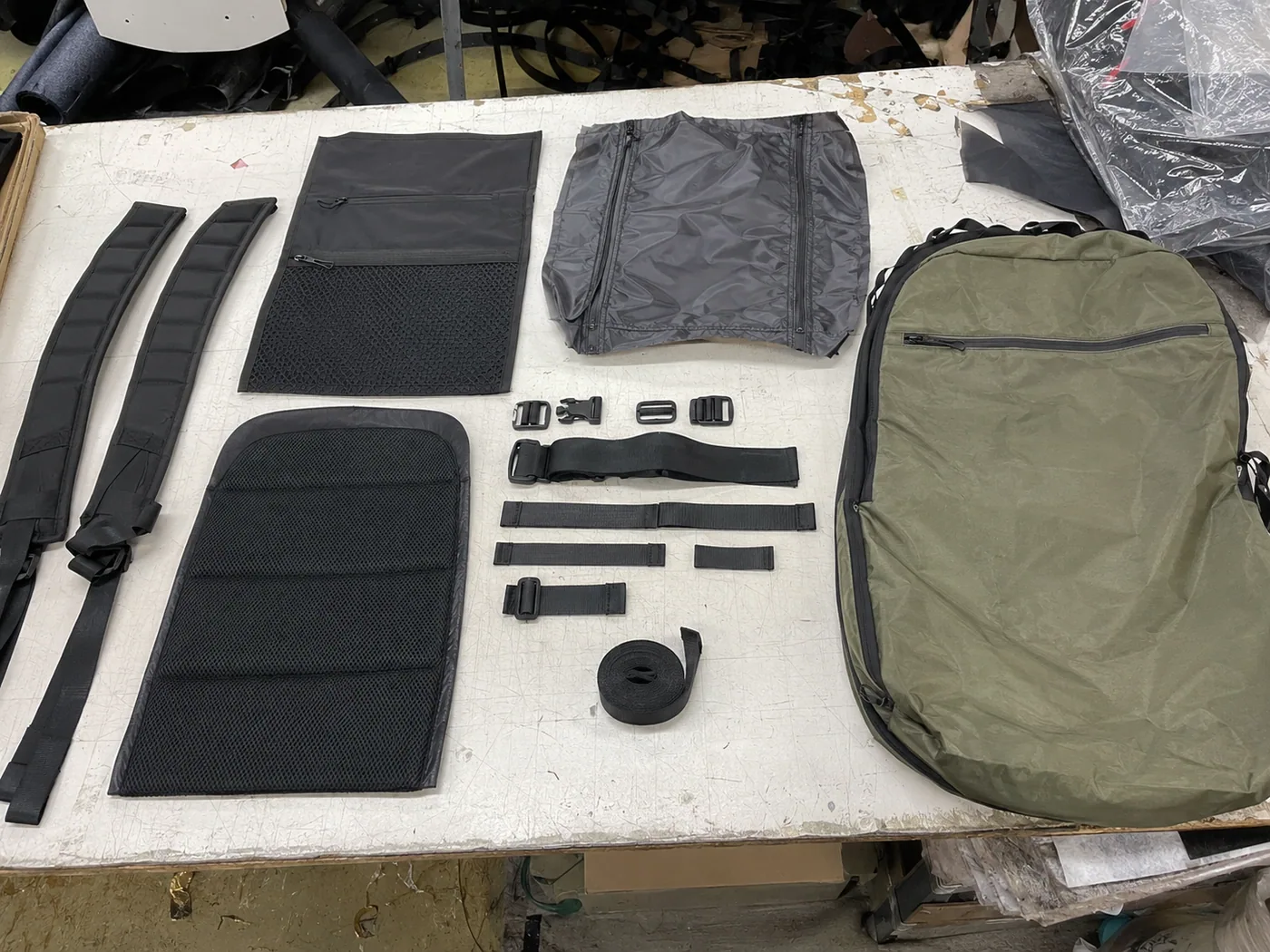

This image adds a real parts-table reference for straps, zipper panels, lining, foam, buckles, webbing, mesh pockets, and shell fabric.
Backpack diagram
Backpack parts diagram for OEM construction
Backpack sourcing gets cleaner when buyers name the same construction parts as the factory. The diagram is built for sourcing guides, tech packs, and supplier comparison pages.
Asset sections
Bring this into the RFQ before the brief drifts
Shell and panels
Panels define the pattern, shape, capacity, material use, and visible branding areas.
- Front panel
- Back panel
- Side gusset
- Bottom panel
- Lining
Carry and comfort
Comfort parts need clear size, padding, reinforcement, and webbing choices.
- Shoulder straps
- Top handle
- Back padding
- Webbing adjusters
- Chest strap when needed
Access and storage
Pocket and zipper decisions change labor, trim cost, and quality checks.
- Main zipper
- Front pocket
- Laptop sleeve
- Bottle pocket
- Organizer pocket
Reference table
What the buyer checks and what the factory should prove
| Item | Buyer check | Factory evidence |
|---|---|---|
| Front panel | Brand area, pocket layout, shape, and material | Artwork placement and panel pattern |
| Back panel | Comfort, airflow, laptop protection, and padding | Foam spec and sample construction review |
| Shoulder straps | Width, padding, webbing, adjuster, and reinforcement | Strap pull test and sewing review |
| Main zipper | Opening shape, zipper size, puller, and smoothness | Trim approval and function test |
| Laptop sleeve | Laptop inch size, padding, lining, and closure method | Compartment measurement and fit check |
| Bottom panel | Abrasion, standing shape, and stress-point reinforcement | Material and reinforcement review |
Original citation asset
Reference the chart page, not the image file
If another site references this asset, the link should point to the full page so buyers see the context, checklist, and RFQ route.
Download backpack diagram
Copy checklist
Points to cover in the next buyer-supplier call
- Label every visible backpack part before asking for a final quote.
- Define front, back, side, bottom, strap, zipper, pocket, and lining requirements.
- State laptop inch size and sleeve padding if needed.
- Mark reinforcement zones and load-bearing seams.
- Confirm zipper size, puller, webbing width, buckle type, and logo placement.
- Use the approved sample as the final construction standard.
Embed this backpack parts diagram
Cite the asset page, not an image file
If another site references this asset, the link should point to the full page so buyers see the context, checklist, and RFQ route.
<a href="https://connectbags.com/backpack-parts-diagram/"><img src="https://connectbags.com/assets/link-assets/backpack-parts-diagram.svg" alt="Backpack parts diagram for OEM construction"></a><p>Source: Connect5 backpack parts diagram</p>
FAQ
Questions that come up before the factory conversation
What parts should a backpack diagram show?
It should show front panel, back panel, gusset, bottom, shoulder straps, handle, zipper, pockets, lining, laptop sleeve, webbing, buckles, and reinforcement areas.
Why is a backpack parts diagram useful for sourcing?
It gives buyers and factories the same construction vocabulary, which reduces vague quotes and sampling mistakes.
Can this diagram be used in a tech pack?
Yes. Buyers can use it as a checklist, then add exact dimensions, materials, trims, logo placement, and pocket layout in the tech pack.
